'--Three-level protection: provides overload, overvoltage and overcurrent protection--Advanced IGBT inverter, inverter efficiency up to 85%, power saving--PWM control system, 60% duty cycle, efficient welding--Copper connectors with good conductivity and stable output for longer life--Portable design, small size but high power, it is not only a welding machine, but also a work of art.

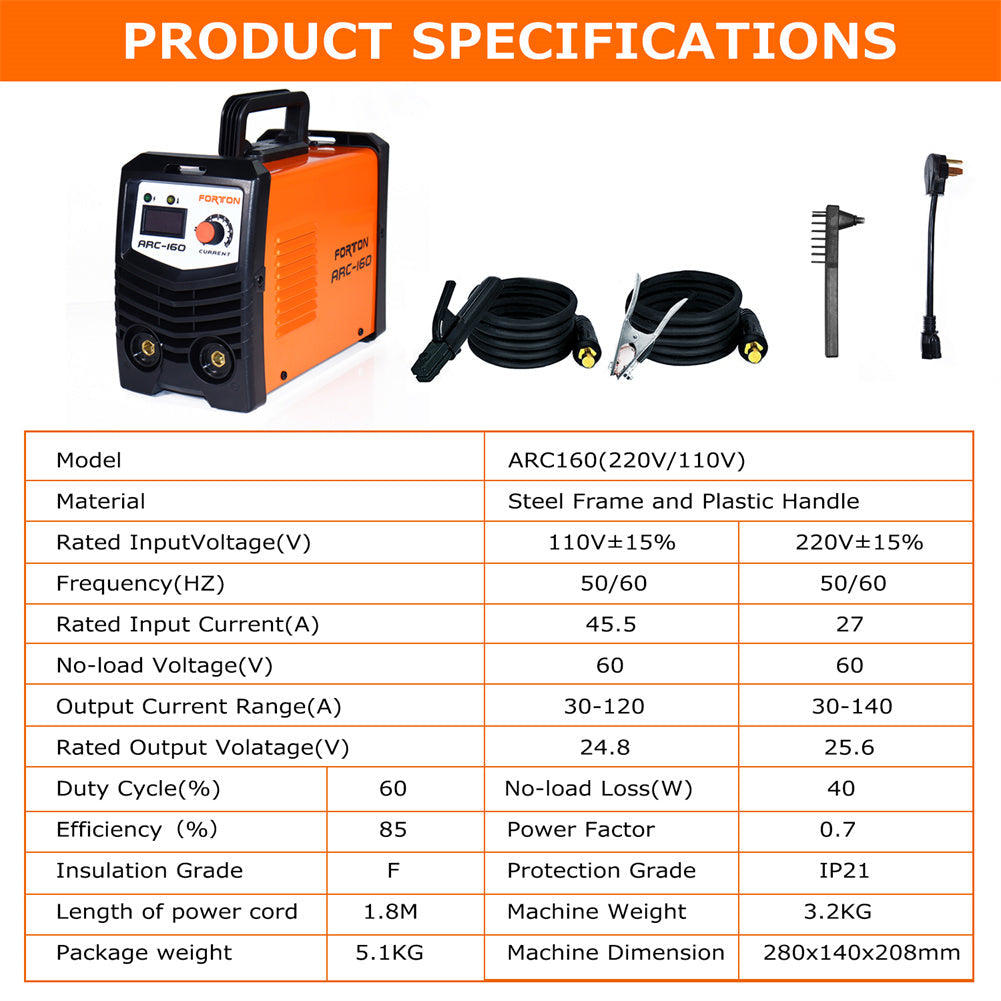

Description:
Name: Electric Welding Machine

Model: ARC-160

Power supply voltage (V): 1-phase AC110V卤10% / 1-phase AC220V卤10%

Frequency (HZ): 50/60

Rated input current (A): 21.8/26.2

No-load voltage (V): 60/60

Output current (A): 20-120/20-140

Rated input voltage (V) 24.8/25.6

Duty cycle (%): 35

No-load loss (W): 60

Efficiency: 85

Power factor: 0.73

Insulation class: F

Shell protection grade: IP21S

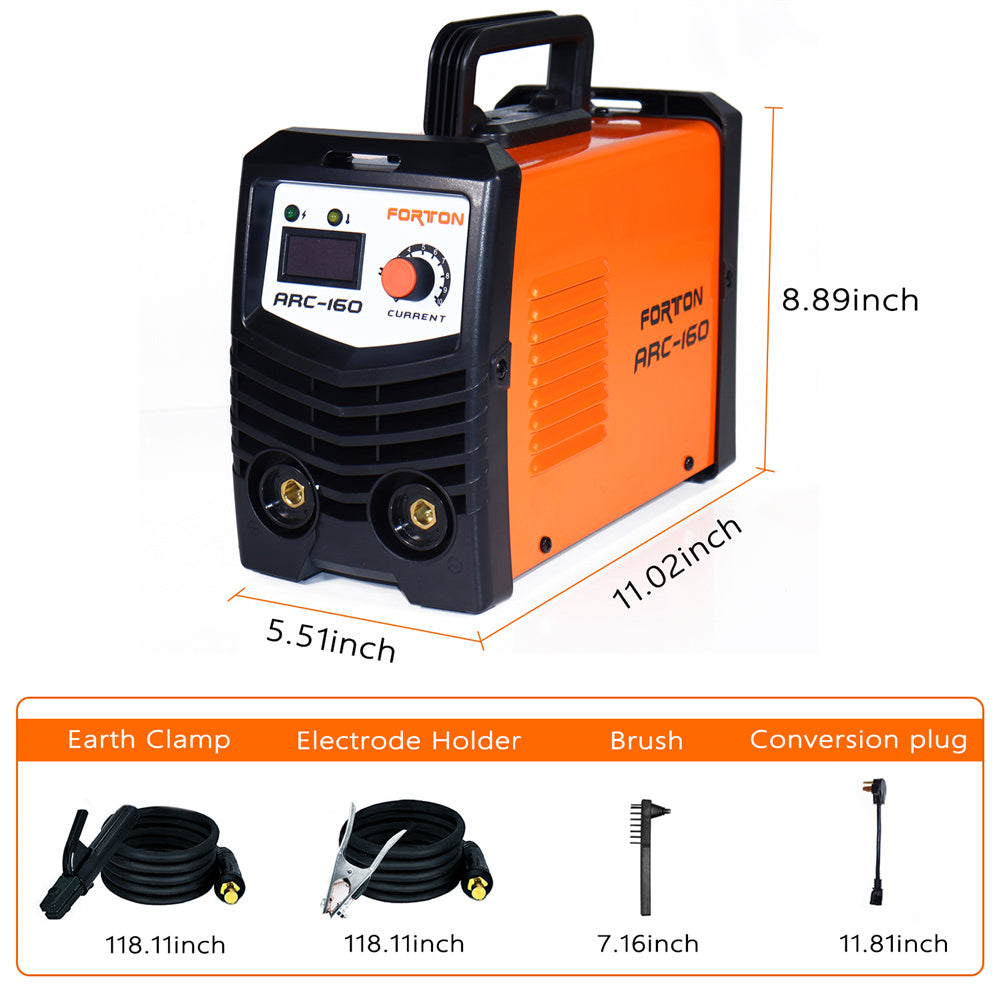

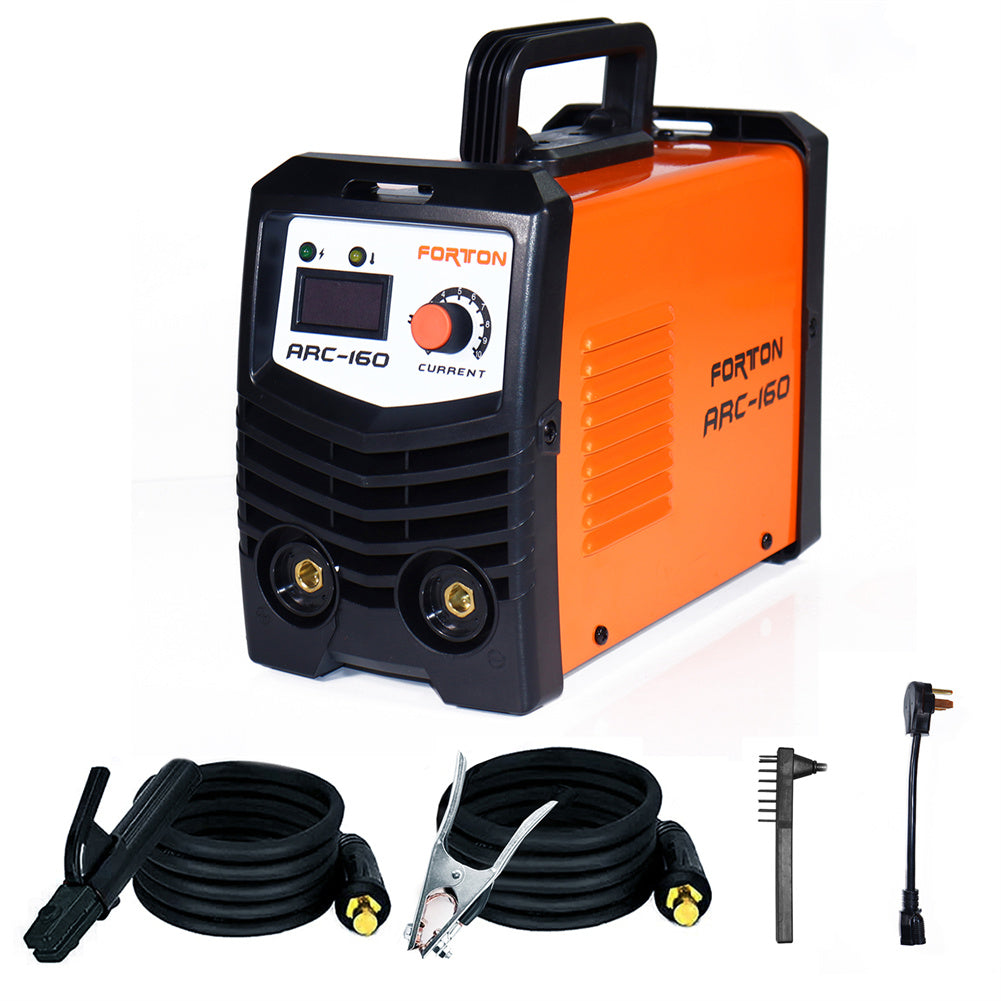

Packing list:

1x Electric Welding Machine
1X copper electrode holder
1X grounding clamp
1X brush / chisel hammer
1X power converter

Note:
Different displays may cause the color of the item in the picture a little different from the real thing.聽
Manual measuring,please allow 1~3mm error,thank you.
